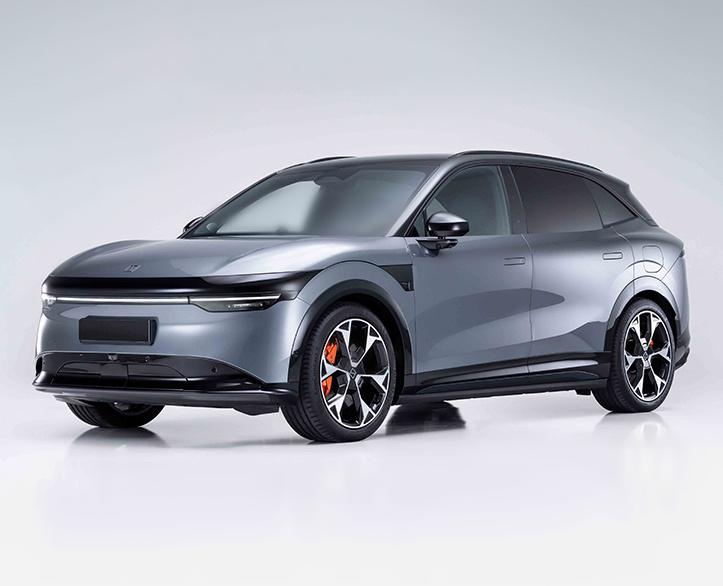

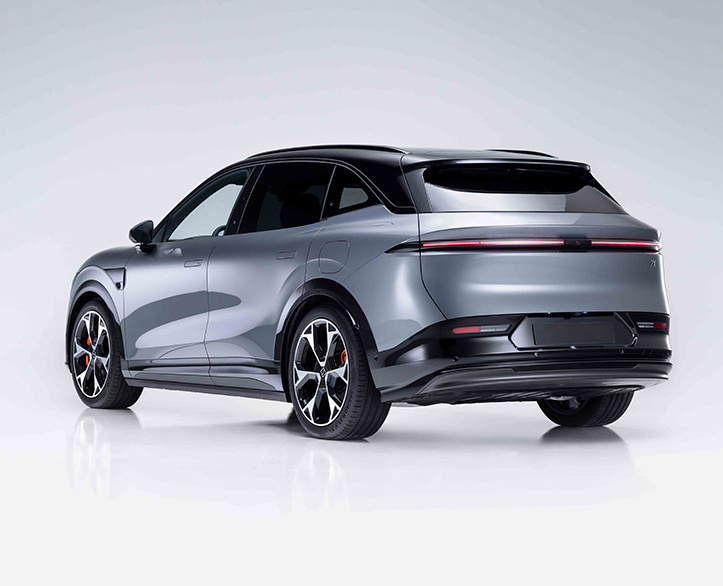

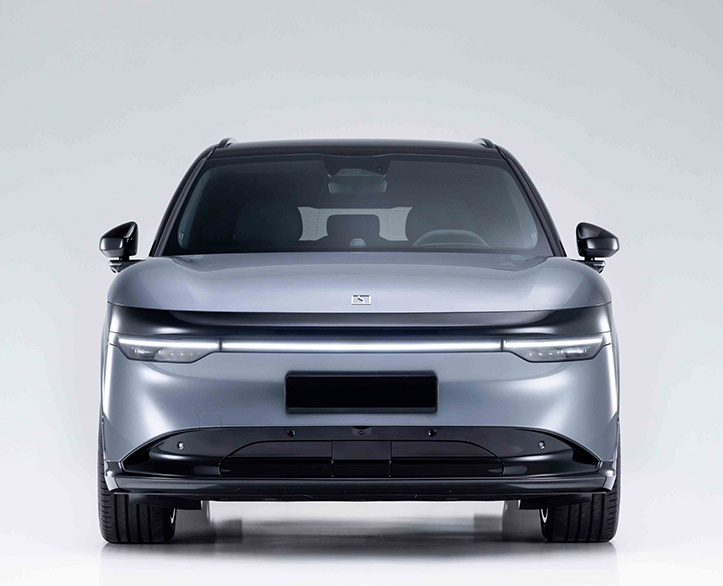

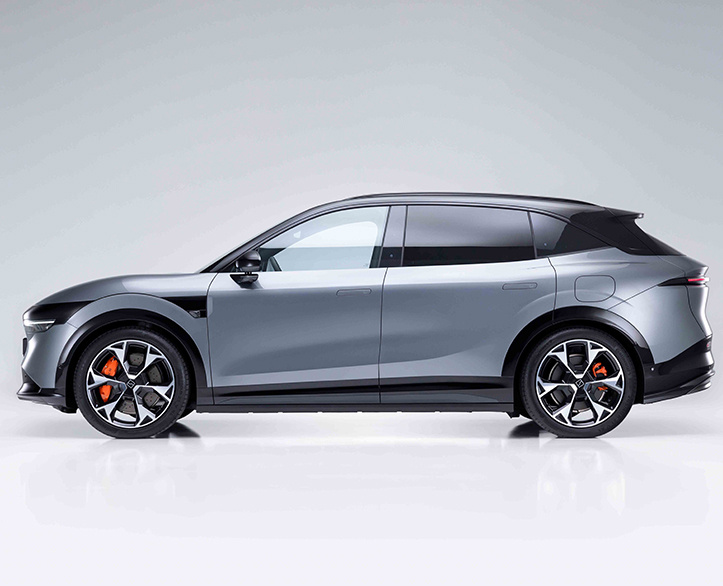

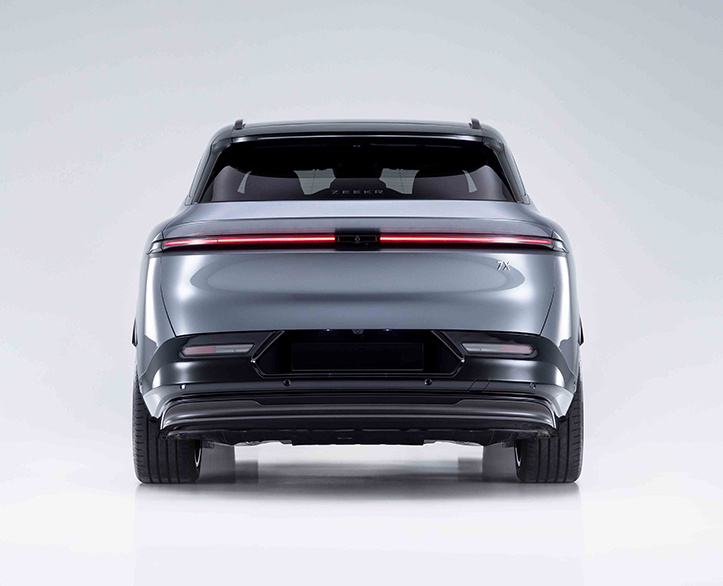

ZEEKR 7X 009 RHD

Specification

RWD Standard

RWD Long Range

AWD Performance

Overall Dimensions, L×W×H (mm)

4,787 × 1,930 × 1,650

4,787 × 1,930 × 1,650

4,787 × 1,930 × 1,650

Wheelbase (mm)

2,900

2,900

2,900

Minimum Ground Clearance (mm)

172

172

172

Turning Circle, Kerb-to-Kerb (m)

11.8

11.8

11.8

Seating Capacity

5

5

5

Battery Capacity (kWh)

75

100

100

WLTP EV Range (km)

480

615

543

NEDC EV Range (km)

568

730

630

Battery Type

LFP

NCM

NCM

Electric Drive System

Single Motor RWD

Single Motor RWD

Dual Motor AWD

Motor Maximum Power (kW)

310

310

475

Motor Peak Torque (Nm)

440

440

710

0-100 km/h Acceleration (s)

5.8

6.0

3.8

AC Charging Power (kW)

22

22

22

3.3 kW V2L Discharge

●

●

●

Front Suspension

Double Wishbone

Double Wishbone

Double Wishbone

Rear Suspension

Multi-link

Multi-link

Multi-link

Wheel Size (inch)

19

19

20

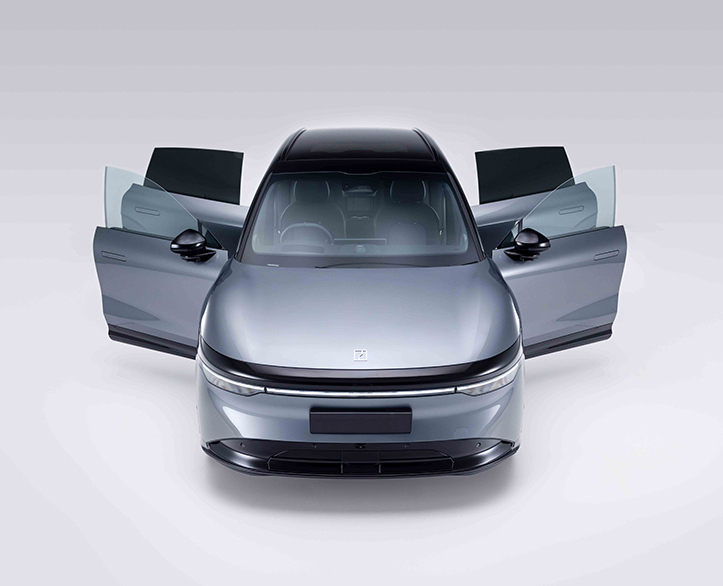

Frameless Doors

●

●

●

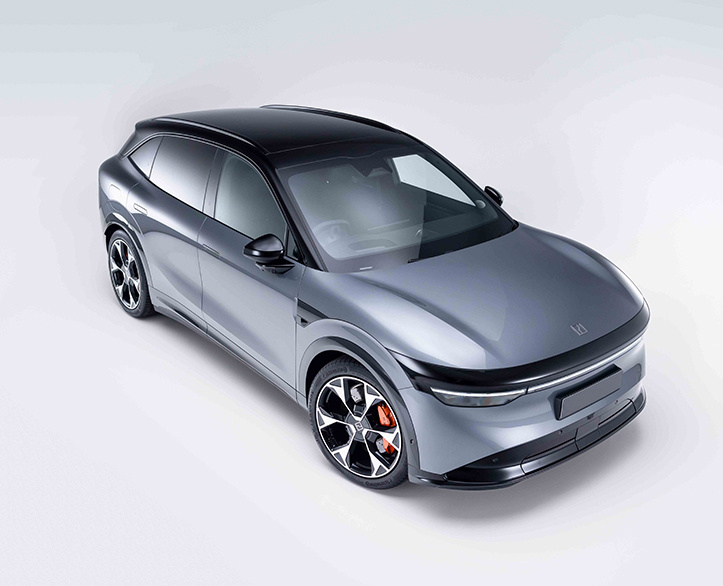

Panoramic Sunroof

●

●

●

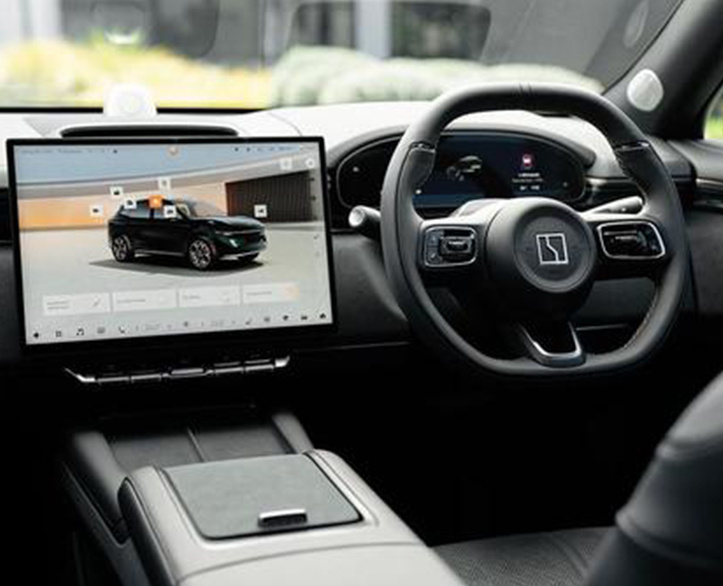

13.02-inch Digital Cluster

●

●

●

16-inch 3.5K Mini-LED Display

●

●

●

Exterior Colours

Crystal White / Onyx Black / Teal Grey / Blue-Silver Roof / Forest Green

Crystal White / Onyx Black / Teal Grey / Blue-Silver Roof / Forest Green

Crystal White / Onyx Black / Teal Grey / Blue-Silver Roof / Forest Green

Interior Colours

Black-Grey / Black / Purple-White

Black-Grey / Black / Purple-White

Black-Grey / Black / Purple-White

Specification

Premium – 7 Seats

Flagship – 6 Seats

Overall Length (mm)

5,209

5,209

Overall Width (mm)

2,024

2,024

Overall Height (mm)

1,812

1,812

Wheelbase (mm)

3,205

3,205

Turning Circle Radius (m)

6.2

6.2

Ground Clearance / Ride Height (mm)

142

142

Kerb Weight (kg)

2,870

2,870

Seating Capacity

7

6

Electrification Platform

400V

400V

Battery Capacity (kWh) @1C

116

116

Battery Type

Li(NiCoMn)O2

Li(NiCoMn)O2

NEDC Range (km)

686

686

WLTC Range (km)

582

582

Energy Consumption NEDC (kWh/100km)

19.5

19.5

Energy Consumption WLTP (kWh/100km)

23.5

23.5

Drive System

Dual Motor AWD

Dual Motor AWD

0-100 km/h Acceleration (s)

4.5

4.5

Maximum Speed (km/h)

210

210

Rated Power (kW)

128

128

Peak Power (kW)

450

450

Peak Torque (Nm)

693

693

DC Charging Time, 10%-80%

30 min

30 min

AC Charging Time, 0%-100% @11kW

13.5 h

13.5 h

Air Suspension

●

●

Second-row Seat Layout

Three-seat bench

Two independent first-class seats

Maximum Storage Volume (L)

574-2,979

574-2,979

Central Display

15.05-inch OLED CSD Touch Screen

15.05-inch OLED CSD Touch Screen

Rear Display

17-inch OLED Roof Screen

17-inch OLED Roof Screen

Exterior Colours

Crystal White / Phantom Black / Mineral Green / Grey Purple

Crystal White / Phantom Black / Mineral Green / Grey Purple

Wheel Options

19-inch Standard / 20-inch Optional

19-inch Standard / 20-inch Optional

Interior Colours

Stone Grey & Polar White / Midnight Blue & Polar White / Stone Black / Jade Green

Stone Grey & Polar White / Midnight Blue & Polar White / Stone Black / Jade Green
